DC micro motors & geared motors

DC CORELESS MOTORS

EVERMO's high-precision technology has given
rise to a one-of-a-kind performer, the Coreless DC Motor. The EVERMO Coreless Motor relegates conventional motors and conventional motor wisdom to the past by incorporating with Nippon Sakura Power(NSP), our special Nd-Fe-B rare earth magnet, along with revolutionary armature which functions without an iron core.
The Coreless Motor is trusted for quality and employed in an array of fields worldwide. Think of it as a "strong silent type" of motor-small and noiseless, yet capable of extremely high output torque.

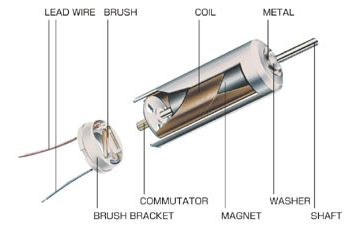

WIRE COIL TYPE CORELESS MOTORS

Coreless Motors Outstanding features

Compact design (Small size and light weight)
Energy saving ( Low current consumption )
Low inertia and high controllability
(Low mechanical time constant and quick
response)
High efficiency (No steel core & high efficiency)
Smooth motive power (Constant rotation without
cogging and very smooth rotation)
Superior rectification and Low electrical noise
and long life.

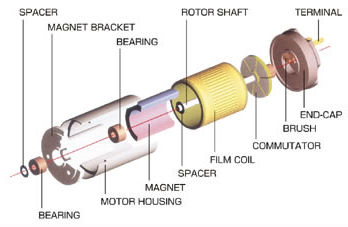

FILM COIL TYPE CORELESS MOTORS

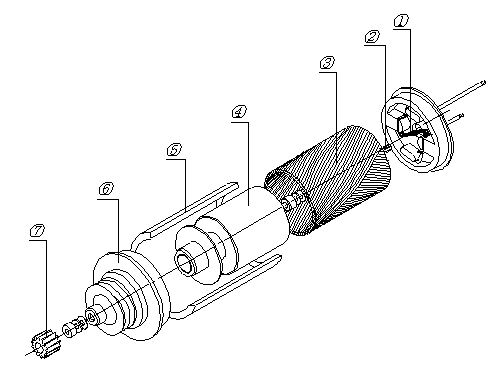

Coreless Motor Construction and Name of Each Part.



	Brushes Commutator Moving coil Magnet Housing Flange Pinion gear

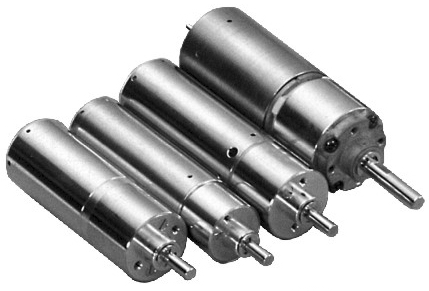

　　　　　　　　DC CORELESS MOTOR & GEARED MOTORS

	Feature

	Nd-Fe-B Magnet Applied and High-Durability Low Current consumption and Very Low Electronic Noise. Ironless Armature offer smooth and quiet operation and no magnetic cogging. High efficiency , low current consumption and long life.

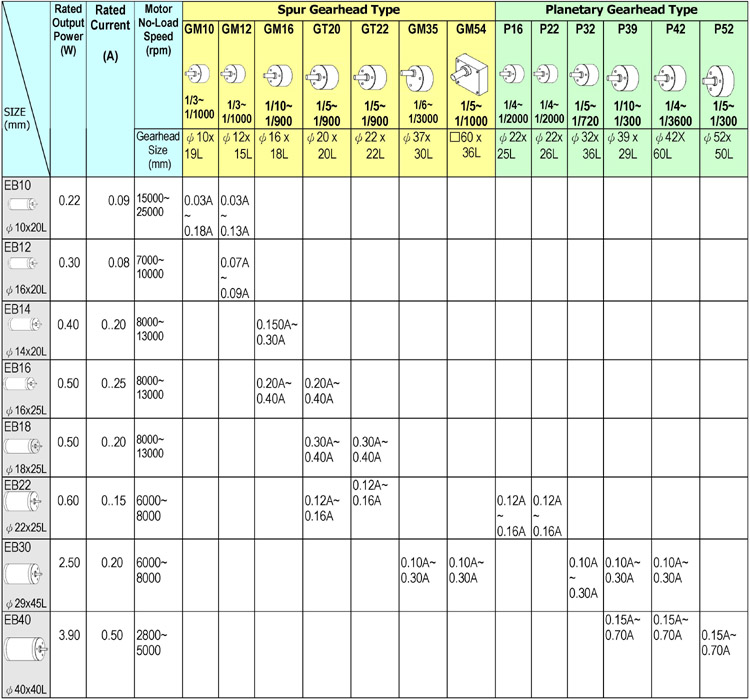

MOTOR & GEARED MOTOR TYPICAL PERFORMANCE

　　　　　　　　　DC CORELESS MOTOR FOR CELLULAR PHONE

	Feature

	Nd-Fe-B Magnet Applied and High-Durability Low Current consumption and Very Low　Electronic Noise. Ironless Armature offer smooth and quiet operation and no magnetic cogging. High efficiency , low current consumption and long life.

STANDARD TYPE OUTLINE


∮6X17.2L ( mm) terminal type	∮6X17.2L ( mm) with metal coat.	∮4X12L ( mm) wire type

SPECIAL TYPE OUTLINE


∮18X3H( mm)	∮14X3.8H( mm)	∮18X4.3H( mm)	∮14X3.4H( mm)	∮12X3.4H( mm)

FOR OEM ORDERS ONLY !!

NOTICE : EVERMO High Duribilty PMDC Micro Motor is only for customer's OEM/ODM orders, so pls contact with our sales engineer by sales02@telstar-tech.com.tw before your samples order released !! Thank you very much !
