SYNCHRONOUS MOTORS

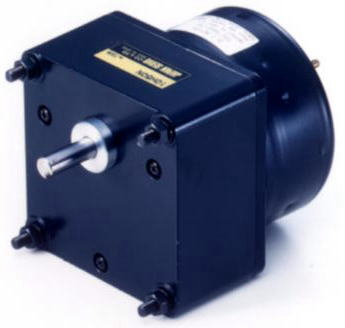

EVERCOM’s Synchronous Motors are compact, Inductor motors with built in gears.
They deliver high torque output with very low power consumption, low noise, low cost, and long lifetime. Everything is self-contained within the simple and compact package, with no condensers or other peripheral components necessary. Since these are high-response condenser-run motors, they are characterized by quick response starts, and the ability to switch between forward and reverse rotation direction. Precision gears and motor are packaged in a simple design, compact body.
Available in wide speed ranges at reasonable costs.

  　　　　　　AC SYNCHRONOUS MOTOR & GEARED MOTORS

ED-5N
ED-9
ED-12
TYPICAL SPECIFICATION

MODEL
FREQUENCY
Hz
No. of
POLES
P
VOLTAGE
V
POWER
INPUT
W
NO-LOAD
CURRENT
mA
 NO-LOAD
PULL-IN VOLTAGE
V max.
WEIGHT
g
ROTATION
DIRECTION
SPEED/TORQUE
rpm/kgf.cm
60
30
15
10
6
5
4
3
2
1
ED-5N
50/60
16
100
1.5
15
80
105
CW or CCW
0.02
0.04
0.08
0.12
0.20
0.24
0.30
0.40
0.6
0.8
ED-9
50/60
16
100
2
20
80
150
0.03
0.065
0.10
0.18
0.30
0.36
0.50
0.65
1.0
1.0
ED-12
50/60
12
100
2.5
35
80
130
0.25
0.50
1.00
1.50
2.50
3.00
3.75
5.00
5.0
5.0


ESR-25G
ESR-48G
ESR-48G
ESR-1G
ESR-6G
TYPICAL SPECIFICATION

MODEL
FREQUENCY
Hz
No. of
P
VOLTAGE
V
POWER INPUT
W
NO-LOAD CURRENT
mA
PHASE SHIFT CAPACITOR
uF
NO-LOAD PULL-IN TORQUE
V max
WEIGHT
g
ESR25G
50/ 60
12
24
1.5
60
2.2
20
60
ESR48G
50/ 60
24
100
2.5
25
0.22
80
150
ESR1G
50/ 60
12
100
3
30
0.33/0.27
80
140
ESR4G
50/ 60
16
100
5.3
65
0.8
80
410
ESR6G
50/ 60
16
100
6
80
0.9/0.7
80
550


Copyright © 2006 TELSTAR International Technology Co., Ltd/EVERCOM Group. All Rights Reserved.
Please contact telst@ms67.hinet.net for more detailed technical spec. data/drawing
  　　　　　　AC SYNCHRONOUS MOTOR & GEARED MOTORS


Feature
  • Switchable forward and reverse revolution.
  • In various speed specification
  • Compact ,yet powerful.
  • High response, low power consumption.
  • Low noise, long life.
  • All spec. in accord with JIS,CE.
TYPICAL SPECIFICATION

MODEL
FREQUENCY
Hz
No. of
P
VOLTAGE
V
POWER INPUT
W
NO-LOAD CURRENT
mA
PHASE SHIFT CAPACITOR
uF
NO-LOAD PULL-IN TORQUE
V max
WEIGHT
g

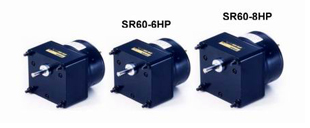

ESR60-6HP
50/ 60
16
100
5.5/7
60/80max.
0.8
80
500
ESR60-8HP
50/ 60
16
100
5.5/7
60/80max.
0.8
80
530
SPEED/TORQUE

MODEL
GEAR RATIO
50Hz
3
5
7.5
12.5
15
25
60
50
75
100
150
187.5
250
300
375
500
750
1500
60Hz
3.6
6
9
15
18
30
36
60
90
120
180
225
300
360
450
600
900
1800
ESR60-6HP
& 6H□
SPEED rpm
125
75
50
30
25
*15
*12.5
*7.5
*5
*3.75
2.5
2
1.5
1.25
1
*0.75
*0.5
*0.25
TORQUE　kgf.cm
0.9
1.5
2.4
4.0
4.8
7.2
8.7
10
10
10
10
10
10
10
10
10
10
10
ERS60-8HP
& 8H□
SPEED rpm
125
75
50
30
25
*15
*12.5
*7.5
*5
*3.75
*2.5
2
1.5
1.25
1
*0.75
*0.5
*0.25
TORQUE kgf.cm
0.9
1.5
2.4
4.0
4.8
7.2
8.7
14
21
29
40
40
40
40
10
40
40
40


NOTE: 1: On mobels marked with asterisks(*), the direction of gear head shaft rotation is reverse of rotation Direction.
　　　 2. In rotation model number: the reduction ratio denominator in the position maker with the box sign□


Copyright © 2006 TELSTAR International Technology Co., Ltd/EVERCOM Group. All Rights Reserved.
Please contact telst@ms67.hinet.net for more detailed technical spec. data/drawing
