LINEAR MOTORS

1.Description

FORMOSA Linear Motors represent an innovative breakthrough in l inear motor technology. Continuously developed and upgraded since 1998, these motors apply the knowledge and technology accumulated over the years by FORMOSA into everyday heavy duty industrial usage. FORMOSA’s technological innovation is
evidenced by its patent, NO 10-2002-0034160 which was given for its unique cooling system.

FORMOSA Linear Motors are three-phase brushless DC Motors that are powered by brushless amplifiers running in current mode or torque mode. The motors can be used in high speed, high acceleration applications that require constant repetitive action for millions and millions of cycles and are designed as a more
efficient alternative to existing gears, belts, ball-screws, friction drives and rack and pinion drives.

FORMOSA Linear Motors are designed to be fully compatible with a variety of commercial linear encoders, drive amplifiers and motion
controllers.

2.Advantages of FORMOSA Linear Motors

	High Velocity and Acceleration – High Velocity and Acceleration is attainable because there is no physical contact between the coil and the magnet. FORMOSA’s Coreless Linear Motor are designed to achieve an acceleration of up to 15Gs and speeds of up to 10m/s.
	Unique Cooling system – The unique cooling tube inside the heat producing Coil assembly maximizes cooling performance, making it possible for FORMOSA’s Linear Motor to sustain a higher level of current and force over contemporary Linear Motor designs.
	High Accuracy and Fidelity – FORMOSA’s Linear motors can be equipped with a linear encoder which gives positional feedback to the motion controller, enabling the linear motor to maintain a positional accuracy of within +/-1 pulse of the Encoder.
	Smaller Positioning System – Because multiple coil assemblies can be mounted onto a single Magnet Track and controlled independently, the size of the positioning system can be drastically reduced.
	Simple Mechanical Design – Unlike other motors, FORMOSA’s linear motor doesn’t need a coupler to transfer force, this means that the produced force can be coupled directly to the load keeping the overall system efficient and simple.
	Longer Life Expectancy – Because there is no physical contact within the motor itself, resulting in a longer life expectancy of the motor, Linear Motors are ideal for use in applications where performance without any degradation is critical factor.

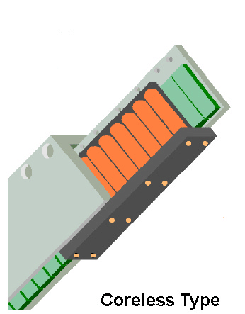

3.Coreless Type

Motor is composed of a mover(coil assembly) and a stator (magnet array)

	Move
	Without Core (No Magnetic Material) Self Bonding Coil Assembly (High Fill Factor) Rigid Molding Structure Air Cooling in Mid- Coil Ejected to the Move Directly
	Stator
	Iron Plate ( Magnetic Flux Path) Double Sided Magnet Array with exact equal space
	Characteristics
	No Magnetic Attraction Low Force Ripple/ Noise / Vibration Cogging Free Smooth Motion (High Accuracy even at Extremely Low speed) Excellent Heat Removal Mechanism

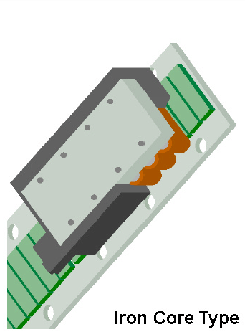

4.Iron Core Type

Motor is composed of a mover(coil assembly) and a stator (magnet array).

	Move
	Coil inserted in Slot of Iron Core Self Bonding Coil Assembly (High Fill Factor) Rigid Molding Structure
	Stator
	Iron Plate ( Magnetic Flux Path) Single Sided Magnet Array with exact equal space
	Characteristics
	Balanced Back EMF Teeth Shape (Negligible Magnetic End Effect) Low Force Ripple/ Good Controllability Optimal Shape Design for Minimizing Cogging Force High Power Rate

*Coreless Type*

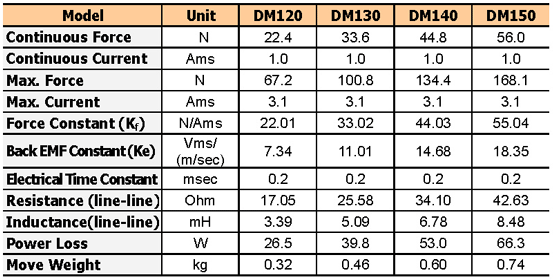

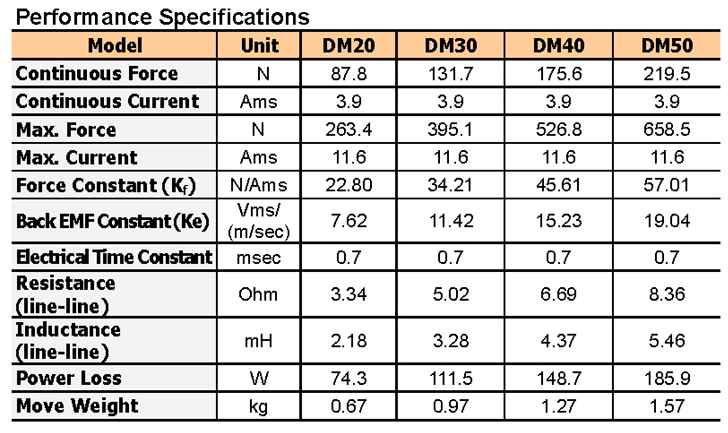

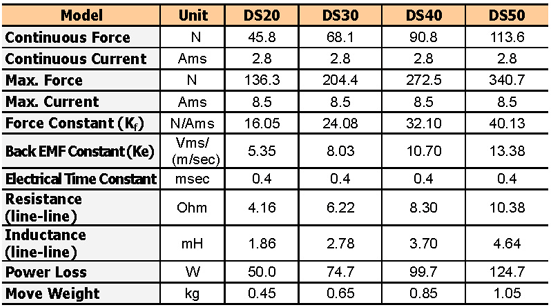

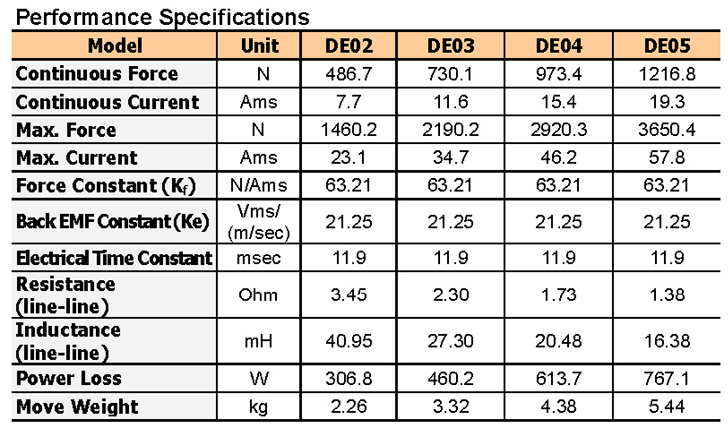

Basic Specifications
Rating Condition : Continuous Voltage Endurance : AC 1500V, 1 Min Operating Temperature : 0 ~ 40℃ Coil Insulation Class : F Class (155℃) Hall Effect Device: Optional Air cooling available at no extra cost Power Supply Requirement: Trapezoidal or Sinusoidal 3-phase Brushless Amplifier.

FL-DMI Series

FL-DS Series

Copyright © 2006 TELSTAR International Technology Co., Ltd/EVERCOM Group. All Rights Reserved.

Please contact telst@ms67.hinet.net for more detailed technical spec. data/drawing.

FL-DM Series

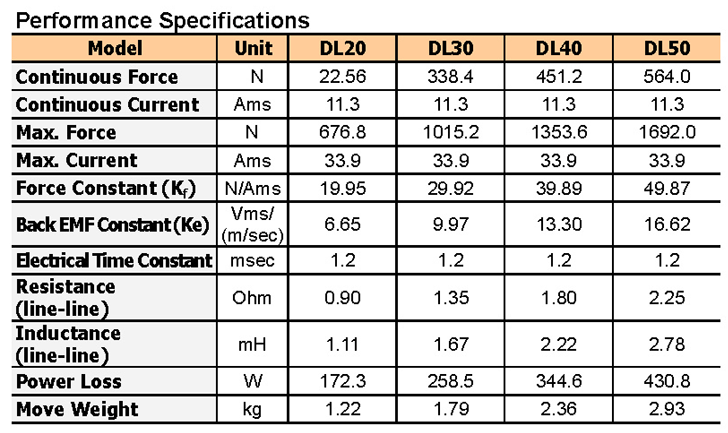

FL-DL Series

FL-DE Series

*Iron Core Type*

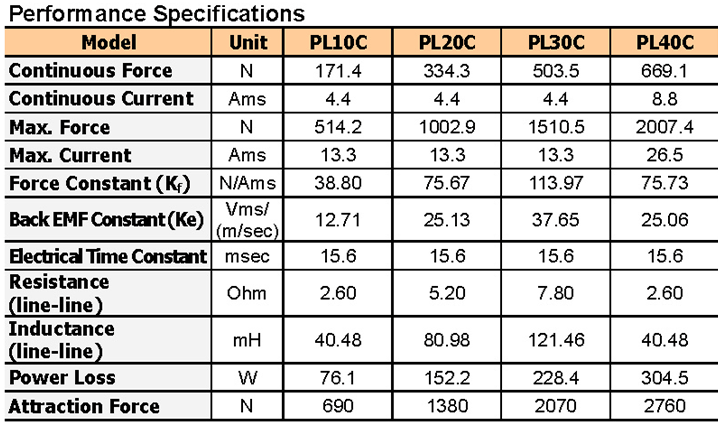

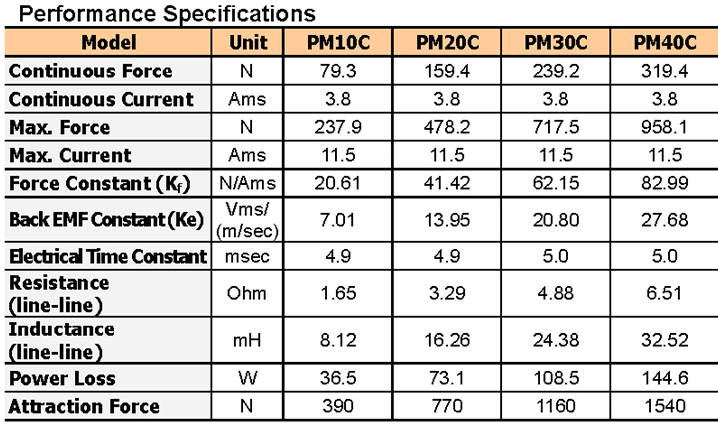

Basic Specifications
Rating Condition : Continuous Voltage Endurance : AC 1500V, 1 Min Operating Temperature : 0 ~ 40℃ Coil Insulation Class : F Class (155℃) Hall Effect Device: Optional Power Supply Requirement: Trapezoidal or Sinusoidal 3-phase Brushless Amplifier.

FL-PMI Series

FL-PS Series

Copyright © 2006 TELSTAR International Technology Co., Ltd/EVERCOM Group. All Rights Reserved.

Please contact telst@ms67.hinet.net for more detailed technical spec. data/drawing.

FL-PM Series

FL-PL Series

Copyright © 2006 TELSTAR International Technology Co., Ltd/EVERCOM Group. All Rights Reserved.

Please contact telst@ms67.hinet.net for more detailed technical spec. data/drawing.

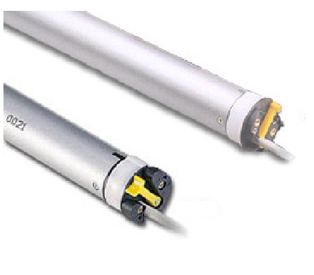

TUBULAR MOTORS	AC&DC ACTUATORS

FULL RANGE OF TUBULAR MOTOR WITH CONTROLLER & ACCESSORIES. AC100V~230V 50/60Hz, WITH CE ,.UL SAFETY APPROVAL	FULL RANGE OF ELECTRIC ACTUATOR GEARED MOTOR WITH CONTROLLER AC100V~230V 50/60Hz, WITH CE ,.UL SAFETY APPROVAL

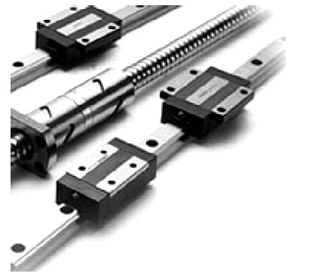

LINEAR GUIDWAY	BALLSCREWS
